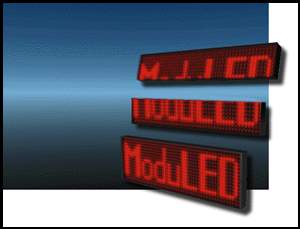

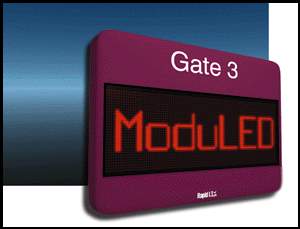

LED DISPLAYS ModuLED panels make big signs a snap!ModuLED sign in custom-designed moulded housing.

ModuLED™ LED panels can be used to manufacture display boards of any size, and are controlled via standard serial or parallel interfaces.  Software is provided to control LED boards using Midas ViewPoint™ on ePC or standard PC-based systems.

Developments in LED display technology has resulted in a diverse range of options. Please contact us for further details.

Note: See previous Monitor section for flat panel plasma monitors.

MLED-8-5/200 Moduled display 8 characters 5mm LEDs
The Moduled™ LED module is a high illumination 8 character 8 by 6 matrix display line. Line height is 78mm and character width is 50mm. Modules can be driven from an attached microcontroller card (RVC80/16A-LED) and keyboard or directly from the parallel port of any standard PC. LED's are 5mm diameter with a 200 milli candela output. Colours available are red, green, orange and blue. This unit is unsuitable for direct daylight placement.
MLED-8-8/500 Moduled display 8 characters 8mm LEDs
The Moduled™ LED module is a high illumination 8 character 8 by 6 matrix display line. Line height is 78mm and character width is 50mm. Modules can be driven from an attached microcontroller card (RVC80/16A-LED) and keyboard or directly from the parallel port of any standard PC. LED's are 8mm diameter with a 500 milli candela output. Colours available are red and orange. This module is suitable for daylight placement.
MLED-16-5/200 Moduled display 16 characters 5mm LEDs

The Moduled™ LED module is a high illumination 16 character 8 by 6 matrix display line. Line height is 78mm and character width is 50mm. Modules can be driven from an attached microcontroller card (RVC80/16A-LED) and keyboard or directly from the parallel port of any standard PC. LED's are 5mm diameter with a 200 micro candela output. Colours available are red, green, orange and blue. This unit is unsuitable for direct daylight placement.

MLED-16-8/500 Moduled display 16 characters 8mm LEDs

The Moduled™ LED module is a high illumination 16 character 8 by 6 matrix display line. Line height is 78mm and character width is 50mm. Modules can be driven from an attached microcontroller card (RVC80/16A-LED) and keyboard or directly from the parallel port of any standard PC. LED's are 8mm diameter with a 500 micro candela output. Colours available are red and orange. This module is suitable for daylight placement.

RVC80/16A-LED LED Microcontroller card

The RVC80/16A is a derivative of the RVC80/16 microcontroller card. It is capable of controlling several MODULED displays. Further details on request.
